Development board details
Explore more about the development board components by hovering over a bullet points.
Get this DVKThis SoC features MIPS 24K @ 400 MHz CPU, 16 MB NOR flash, and 64 MB DDR2 @ 200 MHz RAM memory.

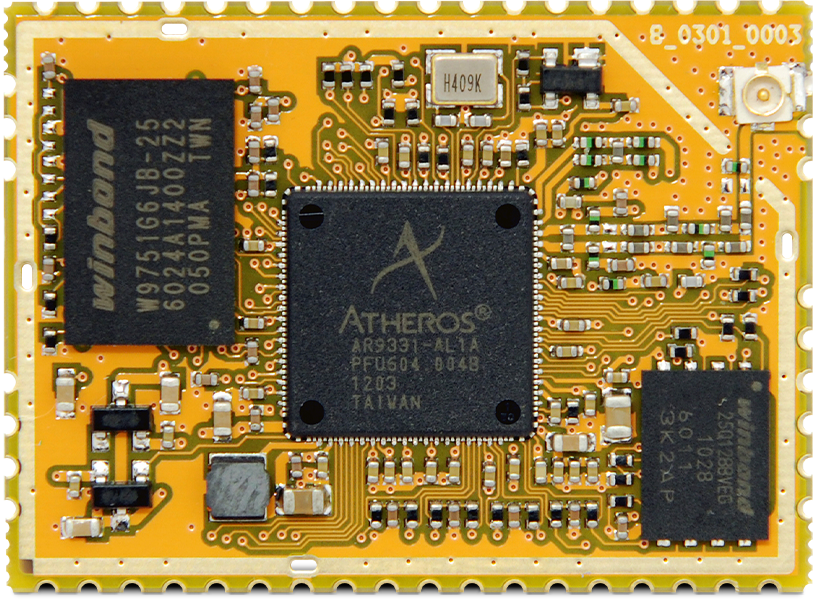

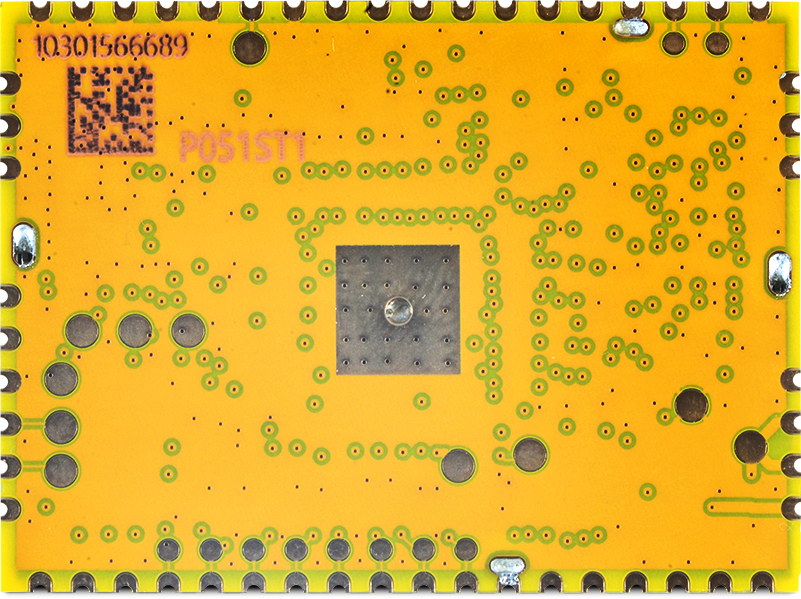

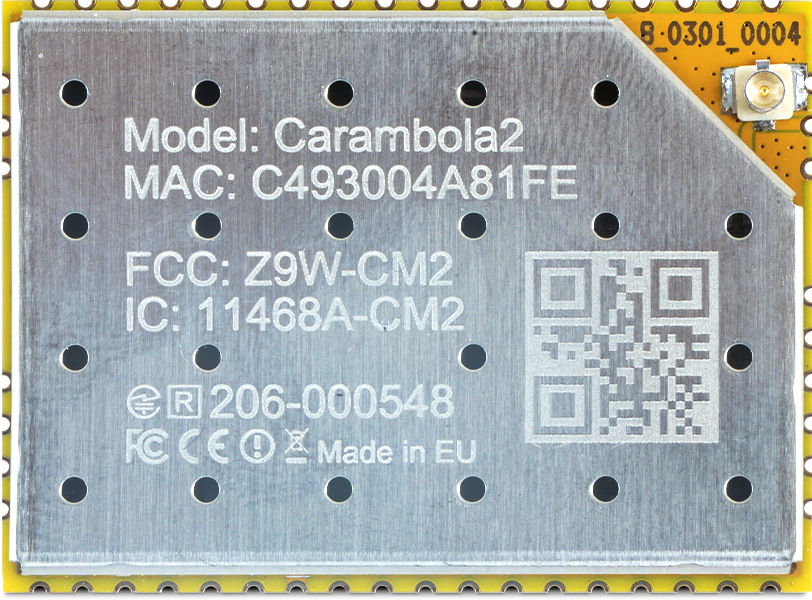

The Carambola 2 single-band Wi-Fi SoM’s industry-leading low power consumption and small, single-sided, surface-mountable form factor make it easy to embed this Wi-Fi 4 SoM into new or existing projects. Linux OpenWrt and FirmUx support make Wi-Fi 4 networking feature development more flexible.

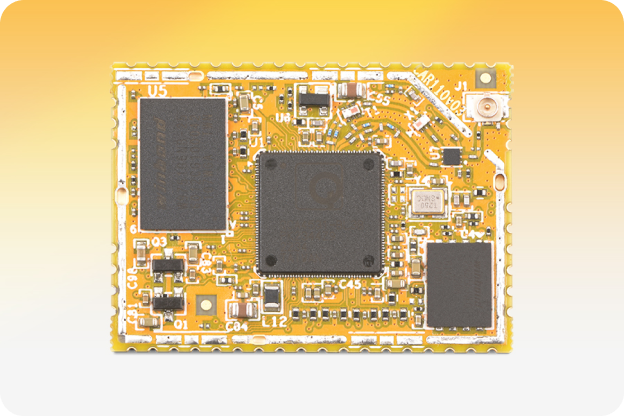

The Carambola 3 is our pin-to-pin compatible upgrade to the Carambola 2. The Qualcomm QCA4531 SoC gives the Carambola 3 greater processing power while remaining easy and cost-efficient to integrate into existing products that already use the Carambola 2.
Carambola 2 supports FirmUx Networking, which is a proprietary embedded Linux framework that provides developers with powerful tools and integration procedures. Use it to unlock powerful network features and build your own full-featured firmware and device software. Carambola 2 also supports open source QSDK.
Integrated 2.4 GHz chip antenna
2 x 10 2.54 mm pitch prototyping area holes
2 x 10 2.54 mm pitch prototyping area holes
ETH0 LAN port
ETH1 LAN port
Type A USB socket
USB C socket (console +power 5V)
Hardware reset button
GPIO programable button
| SoC | AR9331 from Qualcomm |
|---|---|
| CPU | MIPS 24K @ 400 MHz |
| GPU | N/A |
| Flash | 16 MB NOR |
| RAM | 64 MB DDR2 @ 200 MHz |
| Ethernet | 2 x 100 Base-T |
|---|---|
| USB | USB2.0 |
| PCIe | N/A |
| Serial Interfaces | I2S, SPI, SLIC, SPDIF, UART |
| GPIOs | 21 x GPIOs |
| Miscellaneous | N/A |
| Wireless Standard | Wi-Fi 4 (IEEE 802.11 a/b/g/n) |
|---|---|
| Bluetooth Standards | N/A |
| Radio Mode | Single Band, SISO |
| Frequency | 2412-2472MHz |
| Channel Size | 20,40 MHz |
| Data Rate | 150 Mbps |
| Antenna Options | 1 x U.FL or 1 x Pin |
| Max Output Power (per chain) | 21 dBm |
| Linux OpenWrt | |
|---|---|
| Yocto/ OpenEmbedded | |
| FirmUx |
| Power Supply | 3.3V |
|---|---|
| Power Consumption | 0.5 W |
| Dimensions | 28 mm x 38 mm |
| Weight | 6.4 g |
| Temperature Range | 0°C to +65°C | -40°C to +85°C |
| Mounting | Single side |
| Pin Type | Half circle castellated via |
| Certifications | CE, FCC, IC, Telec, KCC |
