With dual-band concurrent Wi-Fi 5 capabilities, a powerful NEON media engine, and numerous hardware security measures, Jalapeno is the perfect Wi-Fi SoM for your full-featured connected project.
Jalapeno supports FirmUx Networking, which is a proprietary embedded Linux framework that provides developers with powerful tools and integration procedures. Use it to unlock powerful network features and build your own full-featured firmware and device software. Jalapeno also supports open source QSDK.
2 x 1000 Base-T Ethernet ports
2 x 1000 Base-T Ethernet ports
2 x USB Type-A sockets (2.0 and 3.0)
Mini USB Type-A socket (console + power)
Buttons (reset and user - GPIO connected)
Buttons (reset and user - GPIO connected)
External LEDs
2.45 mm pitch prototyping are holes
Heatsink mounting screws
Heatsink mounting screws
Heatsink mounting screws

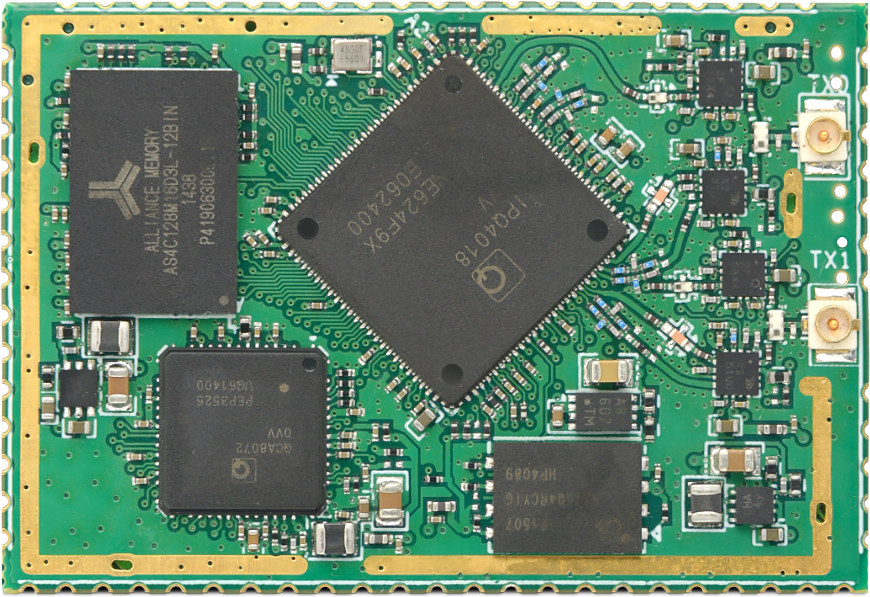

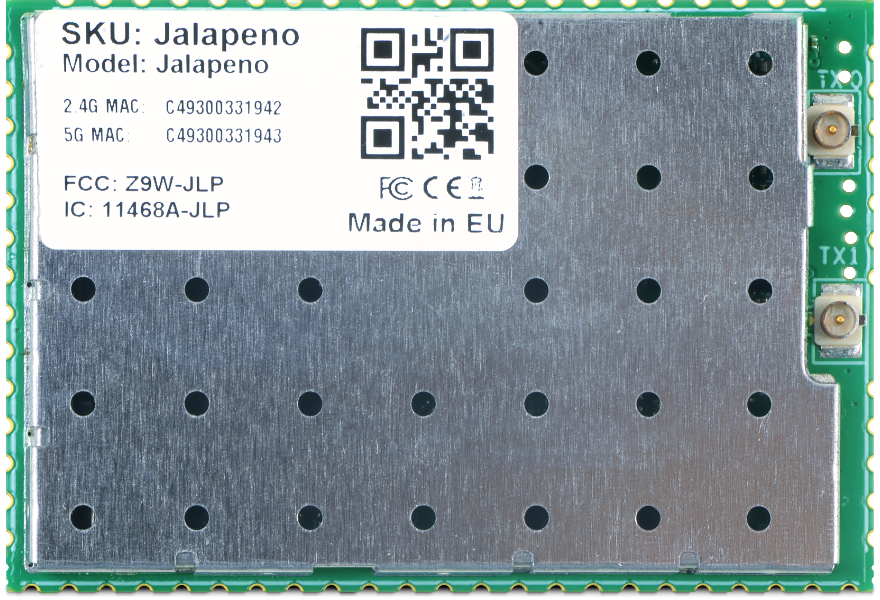

Jalapeno module
| SoC | IPQ4018 from Qualcomm |
|---|---|
| CPU | Quad Cortex-A7 @ 700MHz |
| GPU | N/A |
| Flash | 128 MB NAND & 8 MB NOR |
| RAM | 256 MB DDR3 @ 667 MHz |
| Ethernet | 2 x 1000 Base-T |
|---|---|
| USB | USB3.0, USB2.0 |
| PCIe | N/A |
| Serial Interfaces | UART, I2S, TDM |
| GPIOs | 9 x GPIOs |
| Miscellaneous | N/A |
| Wireless Standard | Wi-Fi 5 (IEEE 802.11 a/b/g/n/ac Wave2) |
|---|---|
| Bluetooth Standards | N/A |
| Radio Mode | Dual Band, 2x2 MIMO concurrent radio |
| Frequency | 2412-2472MHz & 5180-5885MHz |
| Channel Size | 20, 40, 80 MHz |
| Data Rate | 886 Mbps @ 5GHz, 400 Mbps @ 2.4GHz |
| Antenna Options | 2 x U.FL |
| Max Output Power (per chain) | 22 dBm |
| Linux OpenWrt | |
|---|---|
| Yocto/ OpenEmbedded | |
| FirmUx |
| Power Supply | 3.3V |
|---|---|
| Power Consumption | 12.75 W |
| Dimensions | 32 mm x 47 mm |
| Weight | 8 g |
| Temperature Range | 0°C to +55°C |
| Mounting | Dual side |
| Pin Type | Half circle castellated via |
| Certifications | CE, FCC, IC, Telec, KCC |
