Development board details
Explore more about the development board components by hovering over a bullet points.
Get Lima DVKThis SoC provides a 650 MHz CPU, 32 MB flash, and 64 MB RAM memory

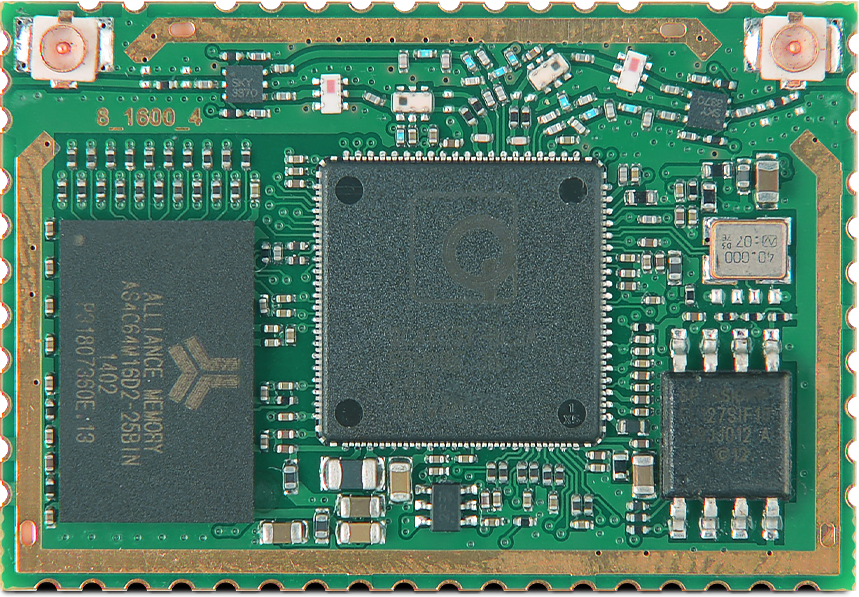

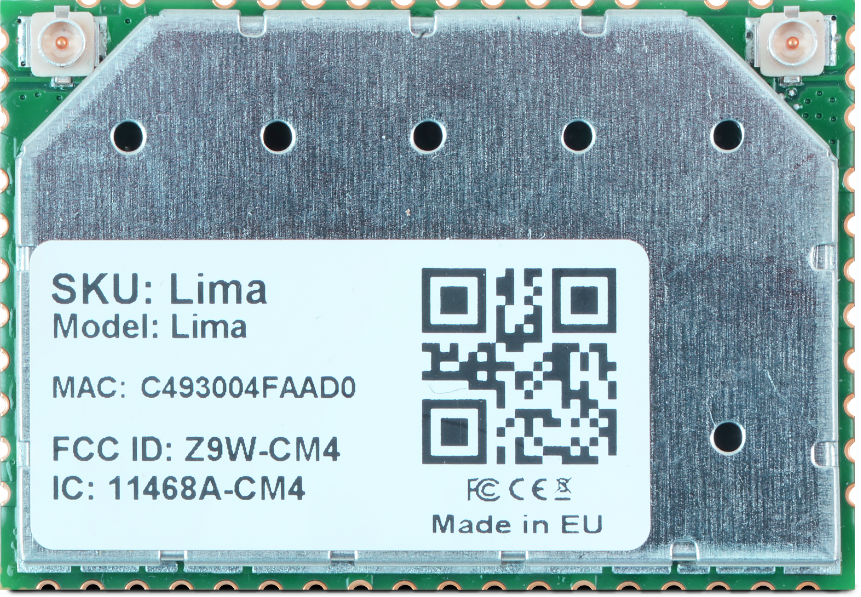

Lima is a highly capable and adaptable single-band Wi-Fi SoM built using the Qualcomm QCA 4531 SoC. Its form factor, connection specifications, and scalability have made it an essential element of countless successful IoT/IoE projects built around Wi-Fi 4 (MIMO 2×2).
Our Cherry module is a pin-to-pin compatible upgrade to Lima. Cherry delivers Wi-Fi 6 compatibility and other updated features in the same compact package. Is this the upgrade you’ve been looking for?
Lima supports FirmUx Networking, which is a proprietary embedded Linux framework that provides developers with powerful tools and integration procedures. Use it to unlock powerful network features and build your own full-featured firmware and device software. Lima also supports open source QSDK.
2 x 100 Base-T Ethernet ports
2 x 100 Base-T Ethernet ports
Mini USB Type-A socket (console + power)
USB Type-A socket
Buttons: S1 - programmable (GPIO connected), S2 - reset
Buttons: S1 - programmable (GPIO connected), S2 - reset
Integrated antennas
Integrated antennas
2.45 mm pitch connector holes
MINI PCIe socket
| SoC | QCA4531 from Qualcomm |
|---|---|
| CPU | MIPS 24K @ 650 MHz |
| GPU | N/A |
| Flash | 32 MB NOR |
| RAM | 128 MB DDR2 @ 300 MHz |
| Ethernet | 2 x 100 Base-T |
|---|---|
| USB | USB2.0 |
| PCIe | PCIe1.1 |
| Serial Interfaces | SPI, UART |
| GPIOs | 13 x GPIOs |
| Miscellaneous | N/A |
| Wireless Standard | Wi-Fi 4 (IEEE 802.11 a/b/g/n) |
|---|---|
| Bluetooth Standards | N/A |
| Radio Mode | Single Band, MIMO (2X2) |
| Frequency | 2412-2472MHz |
| Channel Size | 20,40 MHz |
| Data Rate | 300 Mbps |
| Antenna Options | 2 x U.FL or 2 x Pin |
| Max Output Power (per chain) | 21 dBm |
| Linux OpenWrt | |
|---|---|
| Yocto/ OpenEmbedded | |
| FirmUx |
| Power Supply | 3.3V |
|---|---|
| Power Consumption | 3.1 W |
| Dimensions | 25 mm x 35 mm |
| Weight | 4 g |
| Temperature Range | 0°C to +65°C | -40°C to +85°C |
| Mounting | Dual side |
| Pin Type | Half circle castellated via |
| Certifications | CE, FCC, IC |
