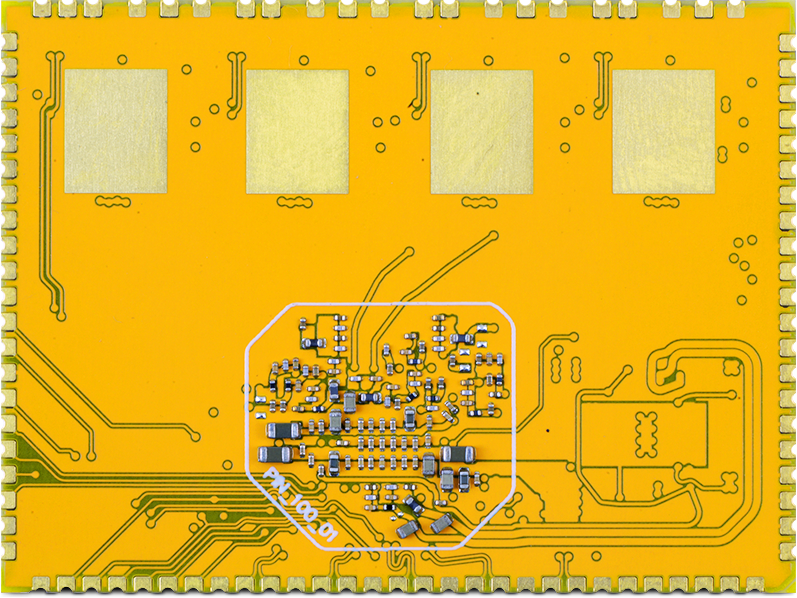

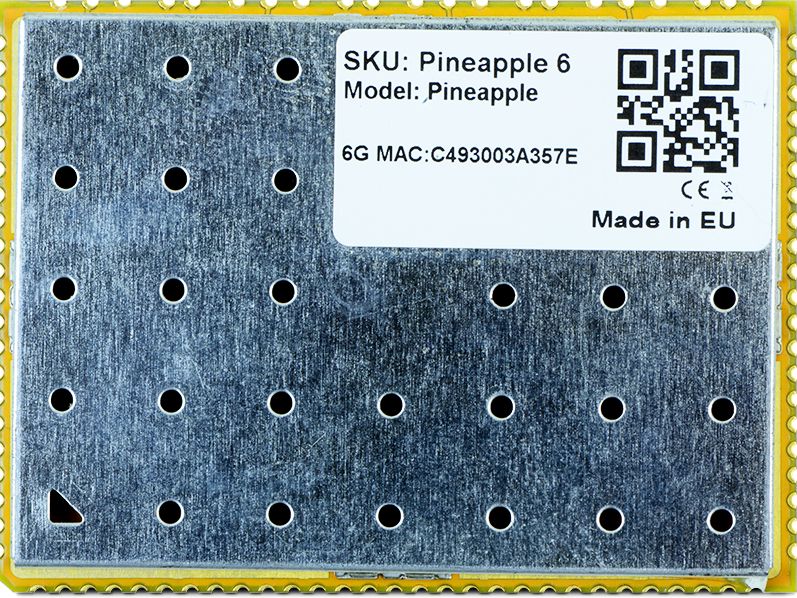

Pineapple

The Pineapple radio module family uses the Qualcomm QCN9074 chipset to unlock the cutting-edge speed of Wi-Fi 6E and other contemporary high-speed standards. Castellated pin module, PCIe, and M.2 A+E configurations mean there are more ways to integrate high-performance connectivity into your existing projects.

Target industries
Enterprise connectivity
Robotics & drones
Industrial IoT solutions
Smart city infrastructure
  • Qualcomm QCN9074
    This radio chipset delivers 4x4 MU-MIMO radio support, 160MHz maximum channel sizes, and a broad range of connectivity features.
  • Flexible integration
    A variety of Pineapple versions and connection options - castellated pins, PCIe, or M.2 A+E slots - makes it easier to plug unprecedented performance into your existing production chains
  • Versatile radio connectivity
    Pineapple can run in access point and station modes and features 4x4 MIMO and 160MHz channels
  • Frequency band options
    Three different Pineapple versions give you the choice of 2GHz, 5GHz, or 6GHz connectivity
  • High-performance Wi-Fi 6
    Pineapple can enable data rates up to 4.8Gbps and minimed latency for your project

Pineapple supports FirmUx

Mango and Pineapple make a powerful combination when used together. When integrated with Mango, Pineapple supports both FirmUx Networking – our embedded Linux platform – and open-source QSDK. This provides developers with the flexibility to choose between fully open source or proprietary Qualcomm drivers with FirmUx’s powerful integration procedure tools. FirmUx also provides easier steps for developers to build their own firmware and manage their device operations.

Variations

Pineapple 2 | Pineapple 2-I
Pineapple 5 | Pineapple 5-I
Pineapple 6 | Pineapple 6-I
Platform
Radio Chip QCN9074 from Qualcomm QCN9074 from Qualcomm QCN9074 from Qualcomm
Wi-Fi Interface PCIe 3.0, castellated pins PCIe 3.0, castellated pins PCIe 3.0, castellated pins
Bluetooth Interface N/A N/A N/A
Linux / Android QSDK/ath11k (no upstream support) QSDK/ath11k (no upstream support) QSDK/ath11k (no upstream support)
Linux Mainline Kernel from 5.4 upward from 5.4 upward from 5.4 upward
Windows support N/A N/A N/A
Wireless
Wireless Standard Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax) Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax) Wi-Fi 6 (IEEE 802.11 a/b/g/n/ac/ax)
Bluetooth Standards N/A N/A N/A
Radio Mode Single band, MU-MIMO (4x4) Single band, MU-MIMO (4x4) Single band, MU-MIMO (4x4)
Frequency 2400-2500MHz 4920-5925MHz 5925-7125MHz
Channel Size 20,40 MHz 20,40,80,160 MHz 20,40,80,160 MHz
Data Rate up to 1147 Mbps up to 4804 Mbps up to 4804 Mbps
Antenna Options 4 x Pins 4 x Pins 4 x Pins
Max Output Power (per chain) 28 dBm 25 dBm 24 dBm
Software Options
Linux OpenWrt
FirmUx
Module Spec
Power Supply 3.3V, 5V 3.3V, 5V 3.3V, 5V
Power Consumption 16W 16W 16W
Dimensions 35 mm x 47 mm 35 mm x 47 mm 35 mm x 47 mm
Weight 43 g 43 g 43 g
Temperature Range 0°C to +60°C | -40°C to +85°C 0°C to +60°C | -40°C to +85°C 0°C to +60°C | -40°C to +85°C
Mounting Dual side Dual side Dual side
Pin Type Half circle castellated via Half circle castellated via Half circle castellated via
Certifications CE, FCC, IC - TBD CE, FCC, IC - TBD CE, FCC, IC
