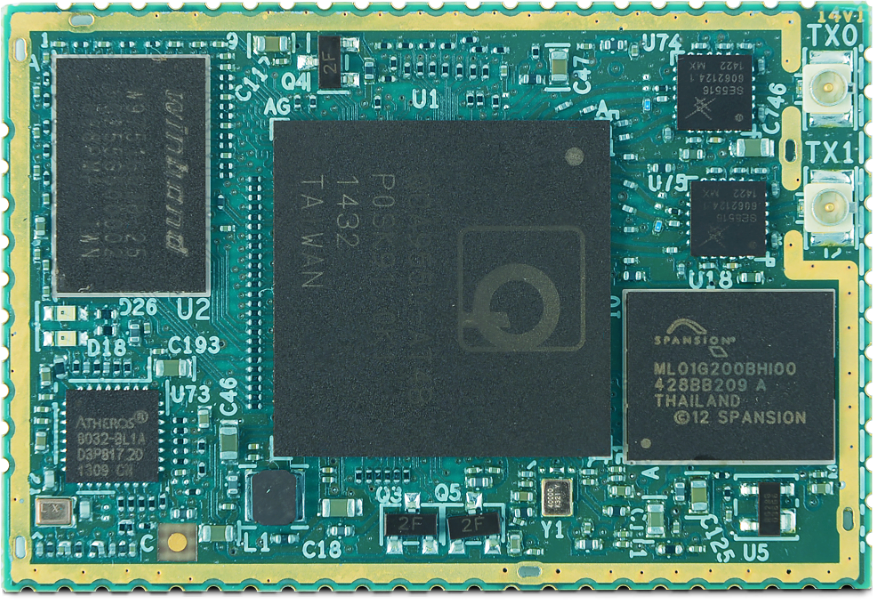

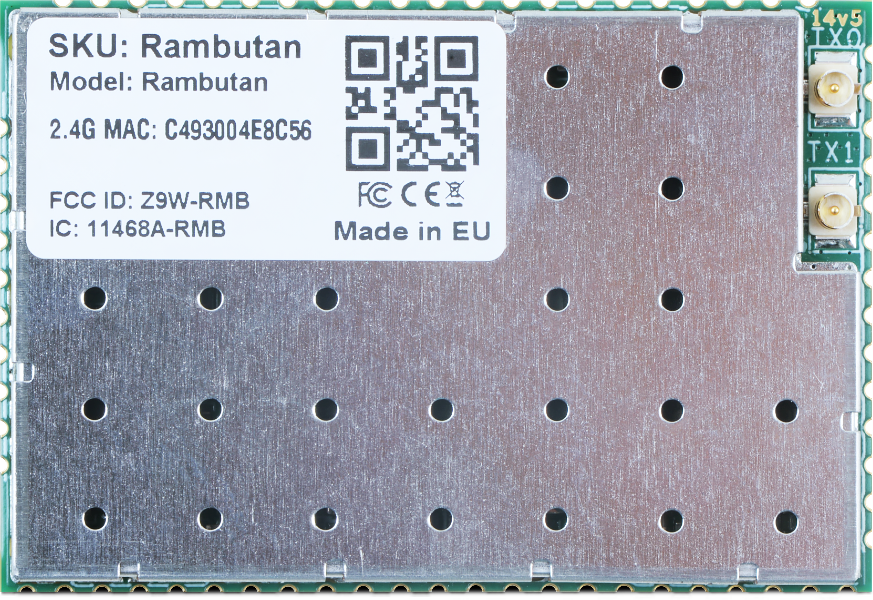

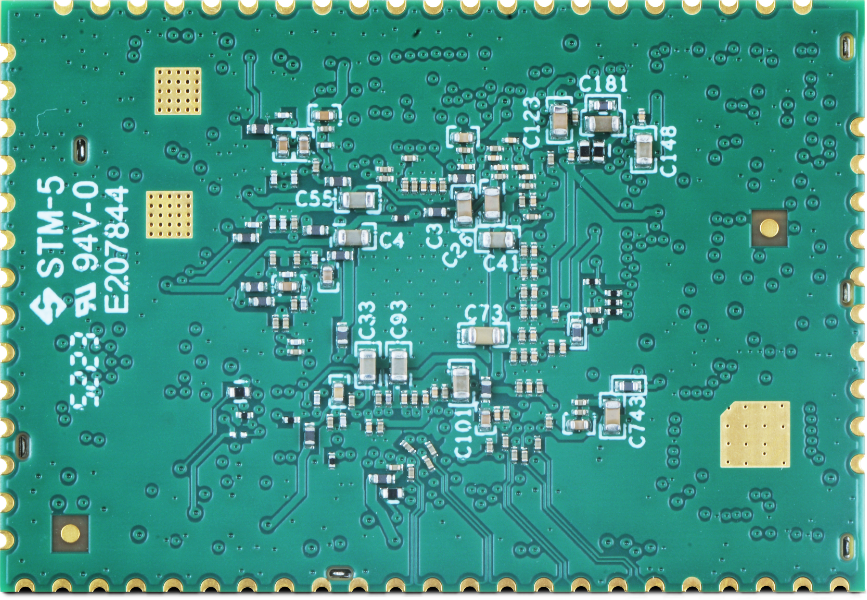

Rambutan is a high-performance dual-band Wi-Fi 4 SoM built on the versatile Qualcomm QCA 9557/9550 SoC. This capable SoM has found its way into numerous successful industrial applications due to its scalable price point.
8devices does not recommend this SoM for new product designs.
Rambutan supports FirmUx Networking, which is a proprietary embedded Linux framework that provides developers with powerful tools and integration procedures. Use it to unlock powerful network features and build your own full-featured firmware and device software. Rambutan also supports open source QSDK.

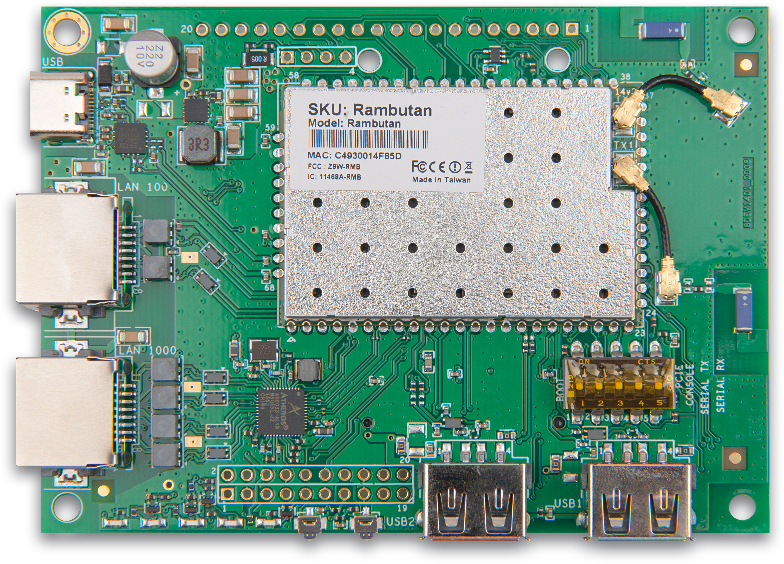

1000 Base-T Ethernet port
1000 Base-T Ethernet port
USB Type-C connector (console UART + power)
2 x USB2.0 Type-A connectors
2 x USB2.0 Type-A connectors
DIP switch for bootstrap configuration
Chain 0 integrated Dual-band antenna
Chain 1 integrated Dual-band antenna
Reset Button
Programmable button (GPIO18)
HerPower supply (+3.3V ) and GND headers
GPIO header
GPIO header

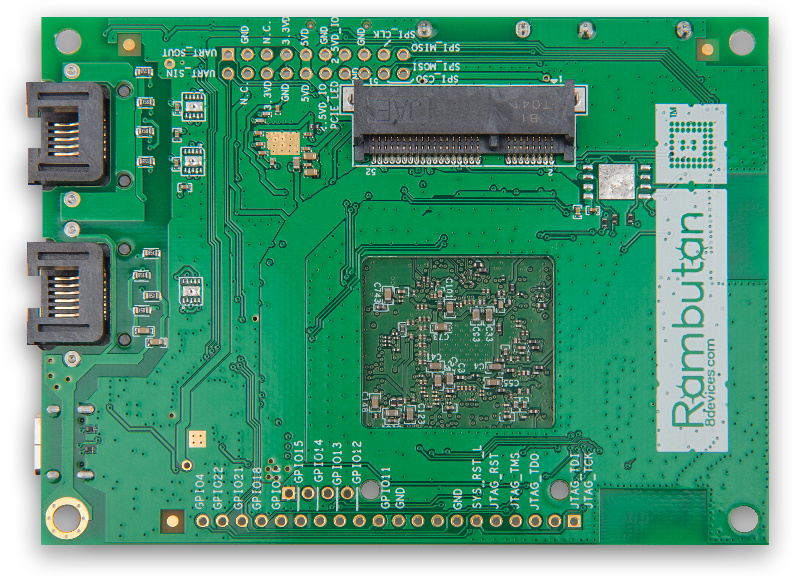

Mini-PCIe connector PCIe 2.0 USB2.0 interfaces.
| SoC | QCA9557 / QCA 9550 SoC from Qualcomm |
|---|---|
| CPU | MIPS 74 Kc @ 720 MHz |
| GPU | N/A |
| Flash | 128 MB NAND |
| RAM | 128 MB DDR2 @ 300 MHz |
| Ethernet | 1 x 100 Base-T |
|---|---|
| USB | 2 x USB2.0 |
| PCIe | PCIe1.1 |
| Serial Interfaces | SPI, UART, I2S, I2C |
| GPIOs | 22 x GPIOs |
| Miscellaneous | SGMII, MDI |
| Wireless Standard | Wi-Fi 4 (IEEE 802.11 a/b/g/n) |
|---|---|
| Bluetooth Standards | N/A |
| Radio Mode | Dual Band, 2x2 MIMO |
| Frequency | 2412-2472MHz or 5180-5885MHz |
| Channel Size | 20, 40 MHz |
| Data Rate | 300 Mbps |
| Antenna Options | 2 x U.FL |
| Max Output Power (per chain) | 21 dBm |
| Linux OpenWrt | |
|---|---|
| Yocto/ OpenEmbedded | |
| FirmUx |
| Power Supply | 3.3V |
|---|---|
| Power Consumption | 3.7 W |
| Dimensions | 32 mm x 47 mm |
| Weight | 8.9 g |
| Temperature Range | 0°C to +65°C | -40°C to +85°C |
| Mounting | Dual side |
| Pin Type | Half circle castellated via |
| Certifications | CE, FCC, IC |
