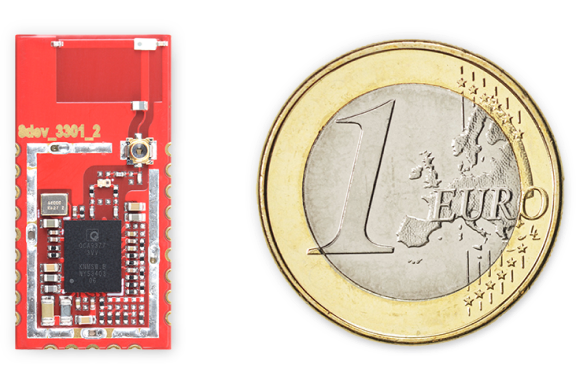

Red Bean is a high-performance and ultra-low-power surface-mount SDIO 3 radio module. Its tiny form factor makes it easy to add single-stream 11ac Wave2 Wi-Fi and Bluetooth® 5.0 to your project.
Despite their small size, these modules manage to fit in dual-band (2.4 and 5 GHz) 1×1 802.11ac Wave2 WiFi (supporting MU-MIMO) and Bluetooth capabilities. Red Bean delivers extraordinary performance and value to projects of any size.
SDIO interface

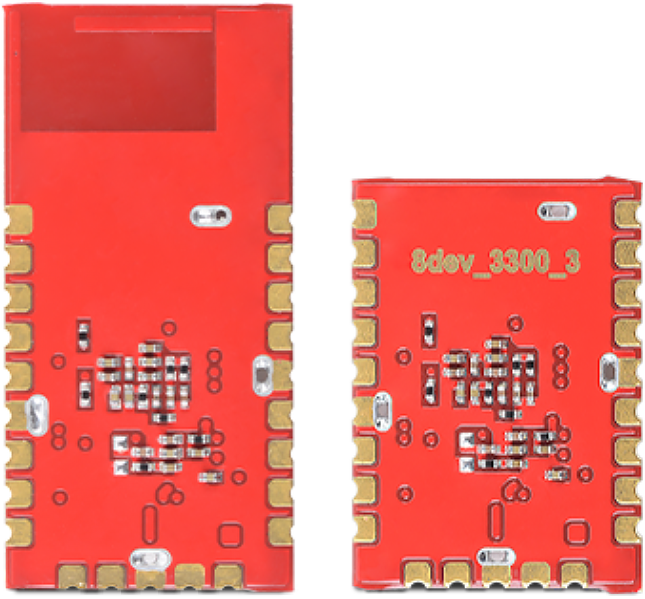

RED Bean module

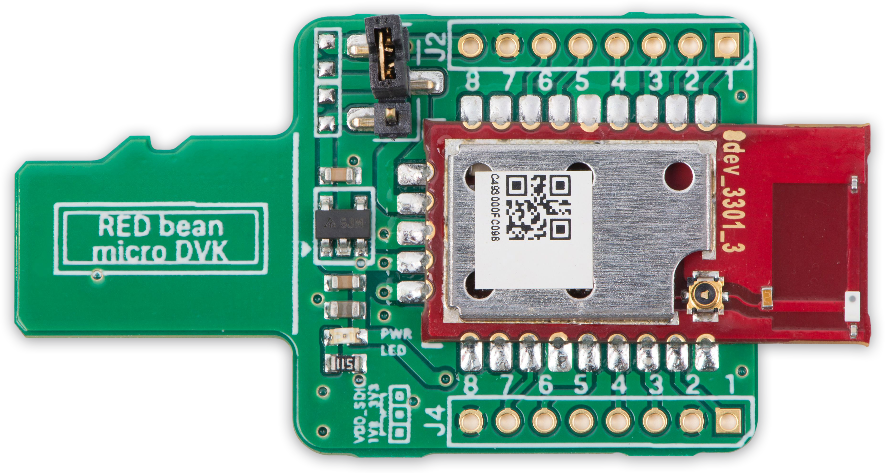

Module breakout for accessing HCI UART and other functionality
Module breakout for accessing HCI UART and other functionality
| Radio Chip | QCA9377-3 from Qualcomm |
|---|---|
| Wi-Fi Interface | SDIO 3.0 |
| Bluetooth Interface | UART |
| Linux / Android | qcacld-3.0 |
| Linux Mainline Kernel | N/A |
| Windows support | N/A |
| Wireless Standard | Wi-Fi 5 (IEEE 802.11 a/b/g/n/ac Wave2) |
|---|---|
| Bluetooth Standards | BT 5.0 + HS, BLE, ANT+ |
| Radio Mode | Dual band, SISO |
| Frequency | 2412-2472MHz & 5180-5885MHz |
| Channel Size | 20,40,80 MHz |
| Data Rate | 433 Mbps |
| Antenna Options | HSC connector / Integrated Antenna |
| Max Output Power (per chain) | 20 dBm |
| Linux OpenWrt | |
|---|---|
| FirmUx |
| Power Supply | 3.3V |
|---|---|
| Power Consumption | 1.8 W |
| Dimensions | 17 mm x 12 mm |
| Weight | 0.9 g |
| Temperature Range | -40°C to +85°C |
| Mounting | Dual side |
| Pin Type | Half circle castellated via |
| Certifications | CE, FCC, IC, UKCA |
